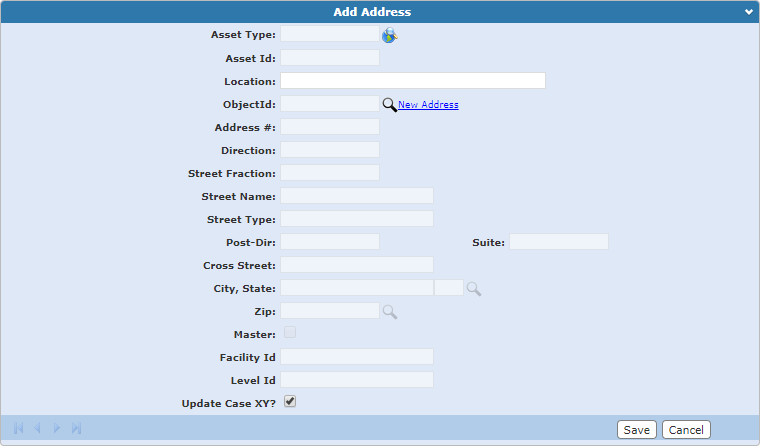

Address Panel Fields

• Asset Type: The category of the permit or application, such as land, structure, and so on.
• Asset Id: This is a numeric identifier assigned to this specific asset.
• Location: This is the location data for the asset.

NOTE: If the Location field on the Main panel is empty and a user adds a geolocated address in the Add Address panel, the Location field is populated on the Main panel when the case is saved.

• Object ID (Parcel): The numeric identifier assigned to a piece of land in the geodatabase. Click Select Address from Land Tables to the right of the ObjectId field to open the Address Query panel. This allows you to find the Object ID associated with a specific address. See Add an Address for more information.
• New Address: This link provides access to Cityworks Land tables.
• Address # : The number of the building, lot, residence, etc.
• Direction: The directional prefix of the street (for example, N, NW, W, etc.).
• Street Fraction: The numerical identifier of a street or alley, which is not separately addressed.
• Street Name: This is the name of the street.
• Street Type: This is the type of street, such as a road, circle, avenue, boulevard, and so on.
• Post-Dir: The directional suffix of the street (for example, S, SE, E, etc.).
• Suite: The number of the unit (such as an office or apartment) within a larger building or complex.
• Cross Street: The name of the nearest intersecting street.
• City: The city where the address is located.
• State: The state where the address is located.
• Zip: The zip code where the address is located. If the zip code in question has already been added to the database, selecting it automatically adds the city and state.

• Master: Select this check box to designate this address as the primary address for the site.
• Facility Id: This is the Facility Id for the building where the asset is located. This field automatically populates if an asset is attached to the work activity. If multiple assets are added to the work activity, the first asset with a Facility Id defined is used. This corresponds with the facility and level IDs set up for assets in the geodatabase. See Add an Asset Type in the Designer Office Companion 23 Guide for more information.
• Level Id: This is the Level Id for the floor where the asset is located. This field automatically populates if an asset is attached to the work activity. If multiple assets are added to the work activity, the first asset with a Level Id defined is used. This corresponds with the facility and level IDs set up for assets in the geodatabase. See Add an Asset Type in the Designer Office Companion 23 Guide for more information.
• Update Case XY?: Select this check box to automatically update the case X and Y coordinates when adding or removing assets.
